Silicone electric heating film (commonly known as: electric heating film, silicone heater) is a soft and bendable sheet-like electric heating device. It is a metal heating element in the shape of a pond and a wire evenly coated with high temperature resistant silicone rubber The glass fiber cloth is made of high temperature molding. Its body is thin, usually 0.8~1.5M thick
Instructions for use
1. When using this type of electric heating device, it must be noted that its continuous operating temperature should be less than 240℃, and the instantaneous temperature should not exceed 300℃.
2. The silica gel electric heating device can work and be pressed, that is, the auxiliary pressure plate is used to make it close to the heated surface (appearance). PCB heating plate is a device that uses electric heating alloy wire as heating material, uses mica soft plate as insulation material, and is outsourcing with thin metal plates (aluminum plates, stainless steel plates, etc.) for heating. Typical applications such as electric thermos. The metal tubular electric heating element is cast in an aluminum plate or aluminum plate or welded or embedded on the aluminum plate or aluminum plate to form various shapes of electric heating plates and electric heating. Typical applications include rice cookers, electric irons, and electric coffee makers. At this time, the heat conduction is good, and the power density can reach 3W/cm2 when the temperature of the working area does not exceed 240°C.

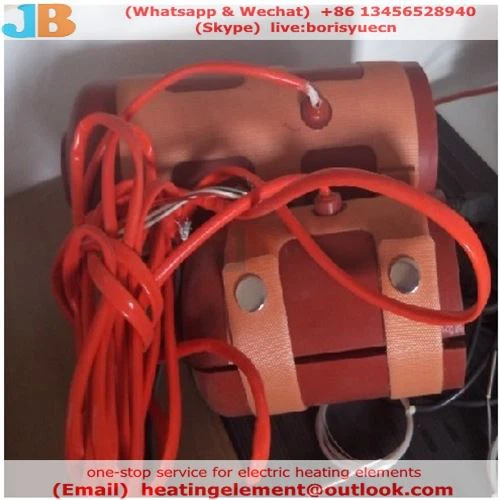

Silicone rubber heating belt with 3M glue.jpg
3. The allowable working temperature is less than 150℃ under the condition of sticking installation.
4. In the case of dry burning in the air, the power density (unit: g/cm3 or kg/m3) should be less than 1 W/cm2 due to the temperature resistance of the material (Material); the power density can reach 1.4 W under non-continuous working conditions /cm2.
5. The working voltage is selected based on the principle of high power (referring to how much work the object does in a unit time)-high voltage, low power-low voltage, and special needs can be listed. Epoxy resin heating plate refers to the general term for a class of polymers containing more than two epoxy groups in the molecule. It is a polycondensation product of epichlorohydrin and bisphenol A or polyol. Due to the chemical activity of epoxy group, a variety of compounds containing active hydrogen can be used to open the ring, cure and crosslink to form a network structure, so it is a thermosetting resin. Bisphenol A epoxy resin has the largest output and the most complete varieties, and new modified varieties are still increasing, and the quality is constantly improving. Silicone Rubber Heaters English translation: Silicone Rubber Heaters also known as: Silicone Rubber Heaters, Silicone Rubber Heating film, silicon rubber heating plate, silicon rubber heating film, silicon rubber heating tape, etc.
