What is a single-head electric heating tube? A single-head electric heating tube is a kind of tubular heating element. In the electric heating industry, there is a model called M3 for a long time.
The structure of the single-head electric heating tube is the same as that of the electric heating tube. It is generally composed of the following parts: insulator, sealing material, lead rod, filler, heating wire, metal sheath, and terminal.
The single-head electric heating tube has the characteristics of simple structure, high mechanical strength, high thermal efficiency, safety and reliability, easy installation, long service life, pollution-free, and low price. At the same time, it saves electricity and is safe to use. It can be bent into various shapes, light, and disassembled. Easy to install.

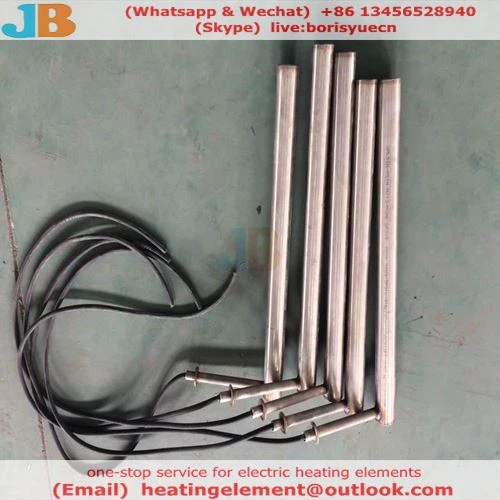

Single-head electric heating tube
Electric heating tube performance requirements:
1. The heating time is under the test voltage, and the time for the component to rise from the ambient temperature to the test temperature should not be more than 15min;
2. The deviation of rated power should not exceed the range specified below under the condition of sufficient heating; for components with rated power less than or equal to 100W: ±10%. For components with a rated power greater than 100W, it is +5% to -10% or 10W, whichever is greater. The power of some companies is very accurate.
3, leakage current cold leakage current and leakage current after water pressure and sealing test should not exceed 0.5mA; hot leakage current at working temperature should not exceed the calculated value in the formula, but the maximum should not exceed 5mA.
