The ceramic heater manufacturer tells you: the replacement of the hot wire of the ceramic heating plate
1. Replacement of ceramic heating wire
1. Wait for the mold to cool, use a torque wrench to remove the hot mold half, and be careful not to twist the manifold.
2. Loosen the screw fixing the heating wire and take out the heating wire.
three. Replace with a new hot runner heating wire.
4. Unscrew the heating channel heating wire.
Key points: When replacing the heating wire of the ceramic heating channel, use a plastic or wooden "soft hammer" to press the ceramic heater into the heating tank. Before half of the mold, check the operation of the heating wire.
2. Replacement of ceramic heating coil
1. After waiting for the mold to cool, take out the hot mold half from the mold.
2. Remove the positioning ring (another function of the positioning ring is to fix the hot nozzle)
3. Install on the lifting hole with m3 screws, remove the thermal spray tube, and pay attention to the heating ring not to knead
4. Remove the snap ring and heat insulation ring.

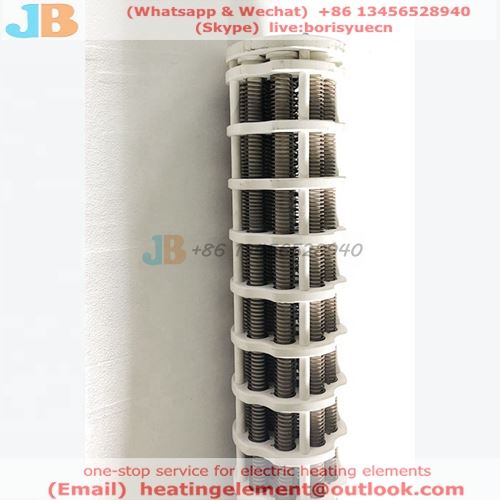

Ceramic heater manufacturers
5. Grasp the head of the hot nozzle, turn it clockwise, then turn and pull the hot ring to gradually separate it from the hot nozzle.
6. When adding a new wire to the device, the heating ring should be as close as possible to the main body of the hot nozzle, and the front end of the heating ring should reach the main body of the ring groove at the front end of the inner core of the hot nozzle.
7. Change the heating circle clockwise to move it to the head of the thermal nozzle to ensure that the heating wire completely reaches the front end of the thermal nozzle. In order to pay attention to the thermal circle on the thermal nozzle spreading to two closes, the center is rarely seen .
8. Install the heat shield of the heating ring. If the insulation cover is relatively tight, check whether the heating ring can be installed in place.
9. Install the circlip and check the standard resistance value of the heating coil and calculate the power (standard power is engraved on the heating coil), and check the resistance value of the thermocouple (zero or less resistance).
