Performance and use of far-infrared ceramic heater
1. Performance and use:
1. Ceramic electric heater is a kind of high-efficiency heater with uniform heat distribution. The metal alloy with excellent thermal conductivity ensures the uniform temperature of the hot surface and eliminates the hot and cold spots of the equipment. It has the advantages of long life, good heat preservation performance, strong mechanical properties, corrosion resistance and magnetic field resistance. Adding a heat preservation device to the outer heat dissipation surface and sintering infrared rays on the inner heat dissipation surface can save electricity by 30%.
2. One is to wrap the alloy wire in a small ceramic square, and the outside is covered with a stainless steel shell. It is widely used in plastic machinery and chemical fiber machinery.
3. One is to cast alloy wires in a semiconductor made of quartz glass. It has the characteristics of high temperature resistance (up to 1200 degrees), anti-corrosion, beautiful and wear-resistant. Widely used in high temperature heating stoves, semiconductor engineering, glass, ceramics and wires
4. The ceramic heater is not made by the general mica wire bending method, but by the ceramic wire threading method, so the power of the product is 0.5 to 1.5 times higher than the ordinary one. The heating element is made of imported round wire ceramic, which is bent into a spring shape and penetrated into a ceramic strip. The outer cover is made of stainless steel, and the middle is made of high-temperature thermal insulation cotton (aluminum silicate fiber board) to prevent temperature leakage. The ceramic strip is a high-frequency ceramic with the characteristics of fast heat transfer, hard and not fragile, high temperature not deformed and not easy to age.

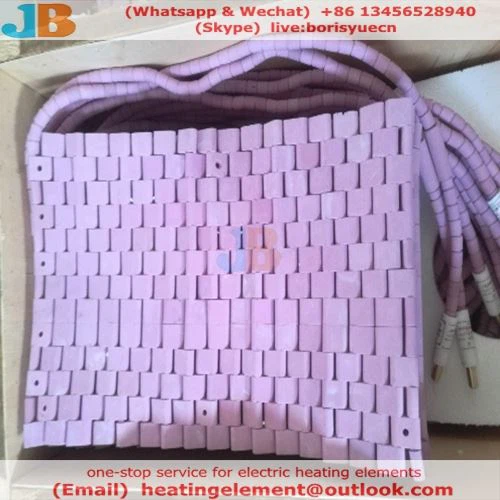

Far infrared ceramic heater
5. Ceramic electric heater is a kind of high temperature and long life heater. In modern industry, the higher and higher working temperature requirements, ceramic heaters can adapt, especially chemical fiber, engineering plastics, plastic machinery, electronics, medicine, Food and various pipeline heating, etc.;
6. The ceramic heater is composed of a spiral resistance wire passing through specially designed high temperature resistant ceramic tiles, and is formed by precise extension, bendable, and a beautiful metal shell ceramic fiber constitutes a heat insulation layer. Form an effective high temperature, high power density, belt heater, and the design is flexible and easy to install.
2. Technical features:
It can be connected according to the user's needs, the voltage is from 36V, 110V, 180V, 220V, 380V, and the high power load is 6.5W per square. Compared with the traditional electric heater, the energy consumption can be reduced by 30%.
