Infrared Heating Film
Description
What's Infrared Heating Film?
Infrared Heating Film CNT (Carbon Nanotubes) opens up a new rea in materials science which can conduct heat and electricity perfectly.
CNT are used in Heating film to control and enhance conductivity. CNT heating film's thermoelectric conversion efficiency are far better than general carbon heating film.
Features
High thermoelectric conversion efficiency
Energy-saving and ecological heating gives a comfortable and luxurious even heat across the whole room.
Long service life
Specification
Power supply: 220/230VAC, 50Hz | IP Grade: IP54 |
Compression strength: 2750V | Tensile strength: 0.15mp/cm2 |
Insulation grade: B1 | Ambient temperature: -40~+90°C |
Radiance: 75%~85% | Oxygen index: >31% |
Thickness: 0.3mm | Wavelength of radiation: 8~15μm |
The max breakdown voltage: 10,000V | Melting temperature: 110°C |
Flame retardant rating: UL94VO | Infrared energy: 756.9K/m2 |
Adhesive strength: 8.0kg/cm2 | The max surface temperature: 73°C |

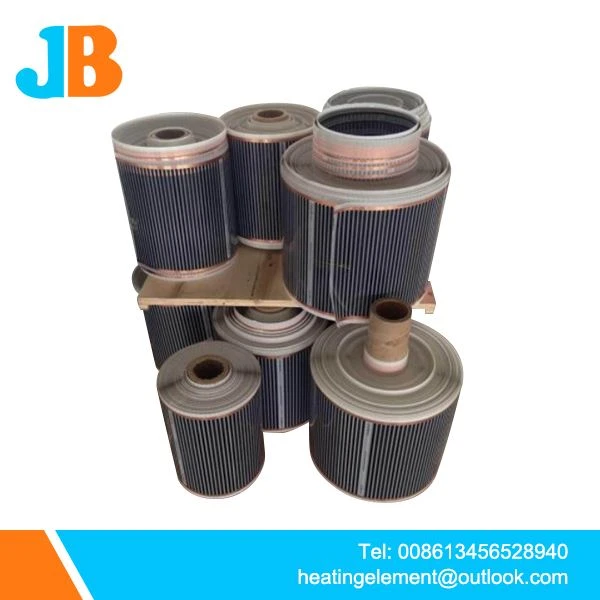

Some Other Production Photos
 |  |  |
 |  |  |
 |  |  |
 |  |  |
