Thick Film Heating Element

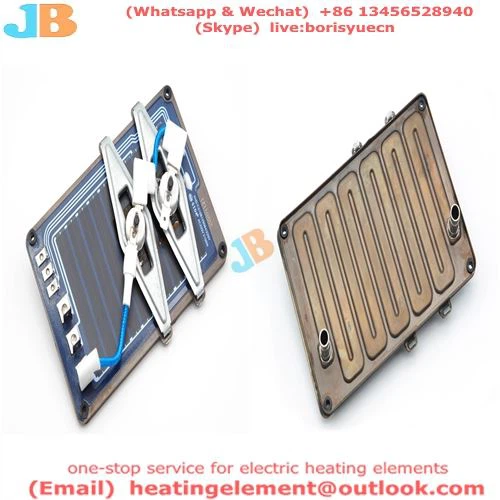

Thick Film Heating Element Electric Heater Plate

The Rare-Earth Metal Thick Film is one of today's most innovation and forward-looking solution for electric heating field.

For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass).

It's printed Silver Conductor and spot weld connected with wires.

Plate Diameter

144mm

Heat Intensity

>60W/cm²

Ramp-Up Rate

80℃/s

Thermal Efficiency

>96%

Heating Power

2.2KW

Service Life

>10,000 hours

Rated Voltage

220v

Certificate

CQC, RoHS

Electric Intensity

1,500V/5mA/60s

Power Deviation

-10% - +5%

Leakage Current

≤0.25mA

Insulation Resistance

≥200MΩ

Shield

PA66+ glass fibre, temperature resistance≥250℃

Snap Action Thermostat

16A, installed close to the heating tube's heating circuit
