Digital Thermostat

Digital thermostat home refrigerator industrial aquarium temperature controller Stc-1000

Product Description

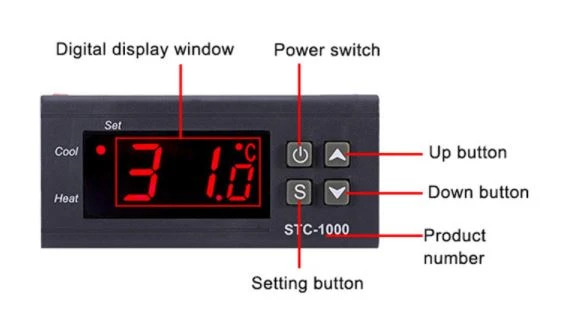

STC-1000 Temperature Controller  Main Features

2 Relays, Switch Between Cooling and Heating Modes.

Alarm When Temperature Exceeds the Limit or When Sensor Error.

Temperature Calibrating, Refrigerating control output delay protection.

Control the Temperature by Setting the Temperature Set Value and the Difference Value

Power Saving: Power consumption is less than 3W Refrigerating control output delay protection.

Can be Used for Domestic Freezer, Water Tanks, Refrigerator, Aquarium, Homebrewing Beer, etc.

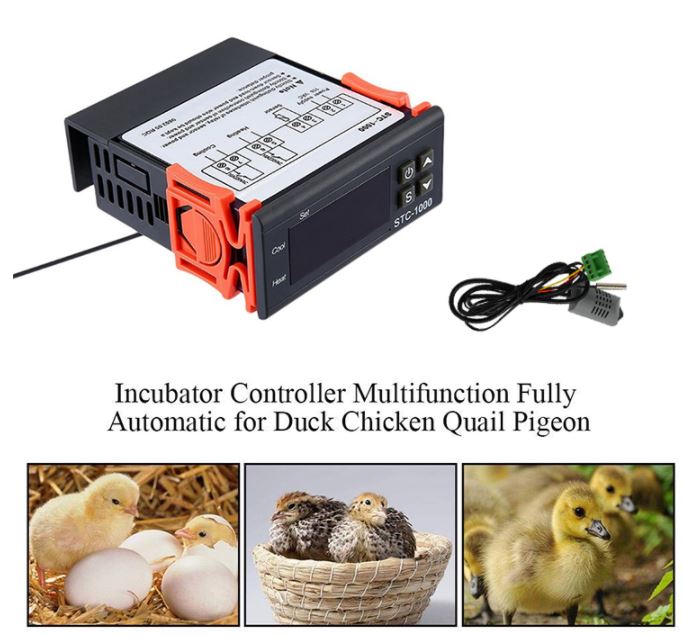

Mini Digital Temperature Controller Thermostat:for Fermentation Hatch Freezer Heating and Cooling

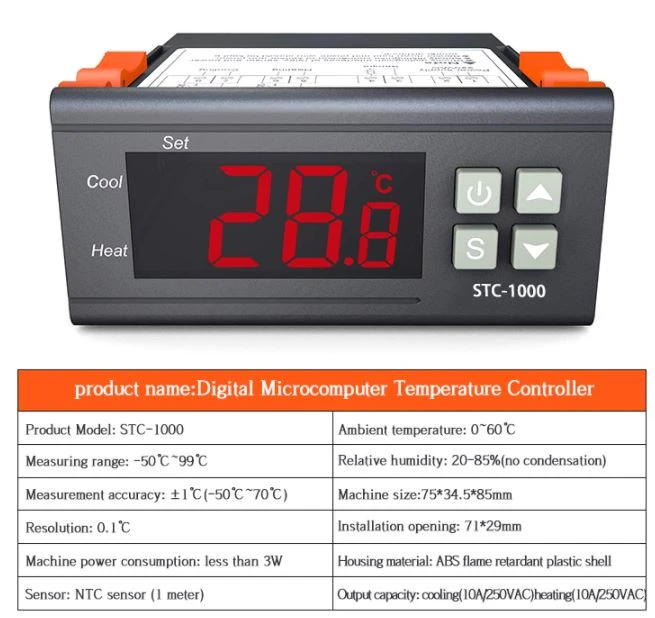

Technical Parameters

Temperature Measuring Range    -50~99°C

Resolution    0.1°C

Measurement Accuracy     ±1℃ (-50~70°C)

Ambient Temperature    0~60°C

Storage Temperature    -30~75°C

Power consumption    <3W

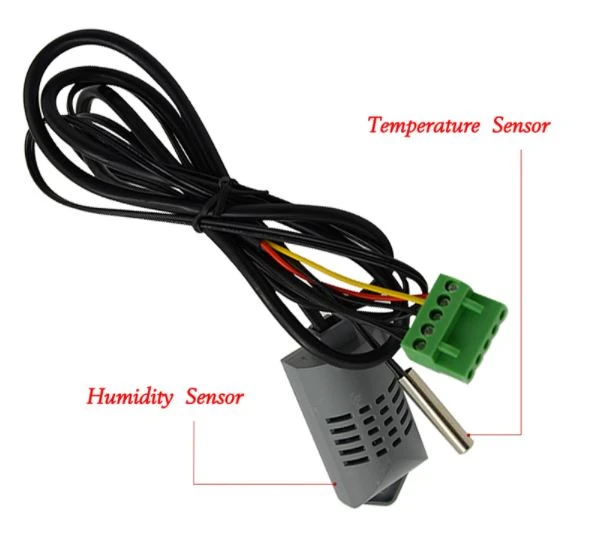

Sensor    NTC sensor (1PC)

Relay contact capacity    Two Relay Cool 10A/220VAC; Heat 10A/220VAC

Relative humidity    20% ~ 85% (No condensate)

Sensor length    1.0m

Sensor error delay    1 minute

Power supply    110-220VAC 50/60Hz,  12Vdc , 24Vdc ( Choose power supply when you place order.

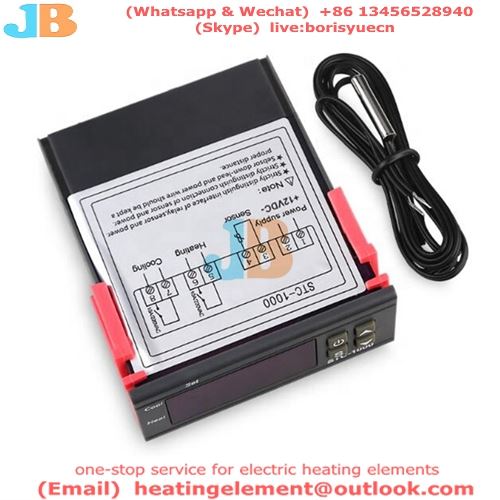

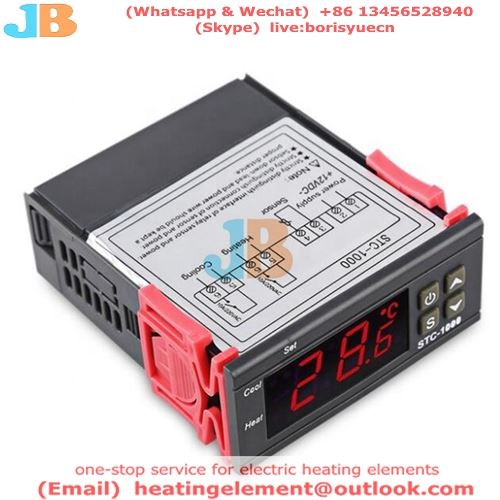

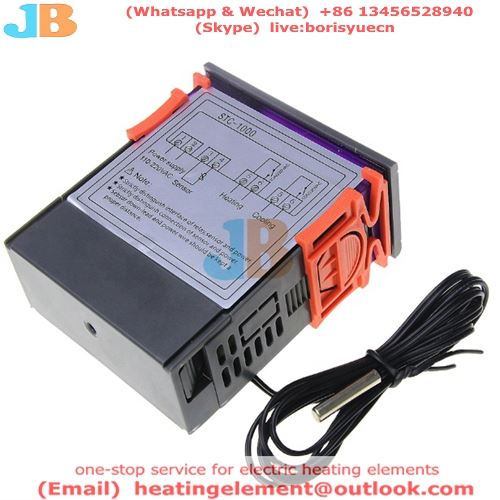

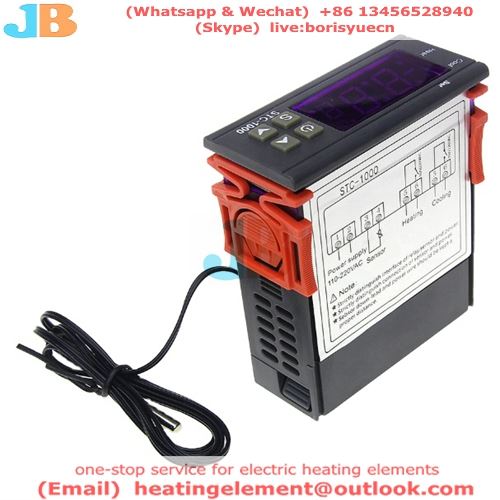

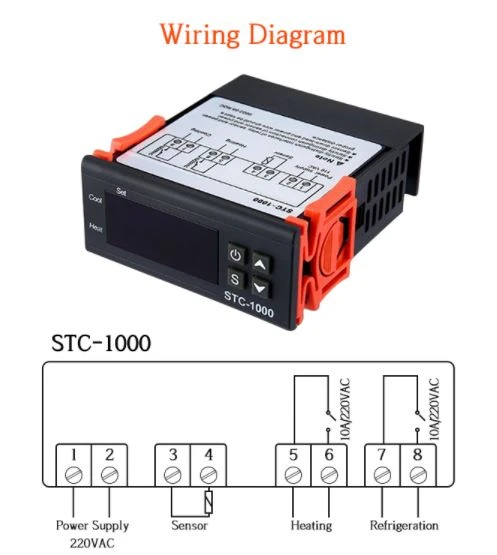

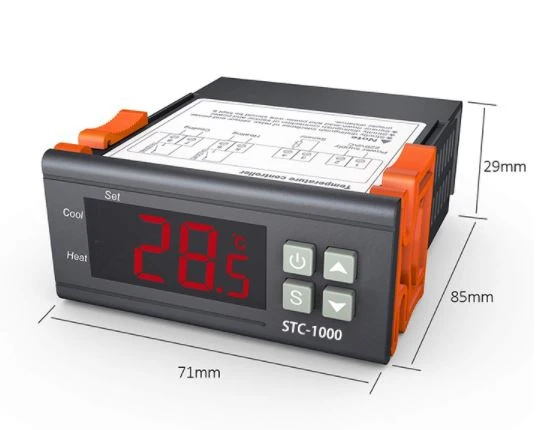

STC-1000 Temperature Controller
