Swimming Pool Heater with V Shape Design High Efficiency Evaporator
The material of tube is Incoloy840, 800, stainless steel 304, 321, 310S, aluminum.
Send Inquiry
Product Details of Swimming Pool Heater with V Shape Design High Efficiency Evaporator
Product Introduction
Our company is committed to becoming a diversified, large-scale and international professional full back heating pad, Mica Sheet Heaters, right angle cartridge heater supplier. Our company has a strong customer group in the country, we keep pace with the times, constantly consolidate our own strength, improve product quality and constantly improve after-sales service. We explore new technologies in the interaction with customers and creative proposals, and constantly improve and perfect the performance of our products from the reasonable suggestions of users.
Description
Defrost heaters for air coolers is Apply in Refrigerator, Freezer, Evaporator, Unit cooler, Condenser.
The material of tube is Incoloy840, 800, stainless steel 304, 321, 310S, aluminum.
The diameter of tube is 6.5 mm, 8 mm, 8.5mm,9mm,10mm,11mm& 12mm, 14mm,16mm and so on.
Ambient temperature: -60°C ~ +125°C
High- voltage in Test : 16,00V/ 5S
Firmness of connection end: ≥50N
High temperature molded Neoprene
Can be manufactured to any length
Specification
Material | SS304, SS321, Incoloy840 |
Voltage | 110-480V |
Tube diameter | 6.5mm, 8.0mm, 8.5mm, 9.0mm, 10.0mm, 11.0mm, etc. |
Power | 200W-3500W |
Length of Tube | 200mm-6500mm |
Length of Lead Wire | 100-2500mm |
Shape | Straight, U, W, or Customized |
Terminal | 6,3 Insert, Male/Female Plug,etc. |
Normal Parameters
For air coolers defrost heaters, we have below normal parameters, just for your references.
Type No. | A(MM) | Inch | Voltage | Power(W) | Tube D | L | Rubber Head D MM) |
JB-12 | 305 | 12" | 110V | 250W | 6.5mm | 250mm | 9.5mm |
305 | 12" | 220V | 250W | 6.5mm | 250mm | ||
JB14 | 355 | 14" | 110V | 280W | 6.5mm | 250mm | |
355 | 14" | 220V | 280W | 6.5mm | 250mm | ||
JB16 | 406 | 16" | 110V | 300W | 6.5mm | 250mm | |
| 406 | 16" | 220V | 300W | 6.5mm | 250mm | ||
JB18 | 457 | 18" | 110V | 335W | 6.5mm | 250mm | |
| 457 | 18" | 220V | 335W | 6.5mm | 250mm | ||
JB20 | 508 | 20" | 110V | 375W | 6.5mm | 250mm | |
| 508 | 20" | 220V | 375W | 6.5mm | 250mm | ||
JB21 | 533 | 21" | 110V | 395W | 6.5mm | 250mm | |
| 533 | 21" | 220V | 395W | 6.5mm | 250mm | ||
JB22 | 558 | 22" | 110V | 415W | 6.5mm | 250mm | |
| 558 | 22" | 220V | 415W | 6.5mm | 250mm | ||
JB23 | 584 | 23" | 110V | 455W | 6.5mm | 250mm | |
| 584 | 23" | 220V | 455W | 6.5mm | 250mm | ||
JB24 | 610 | 24" | 110V | 475W | 6.5mm | 250mm | |
610 | 24" | 220V | 475W | 6.5mm | 250mm |

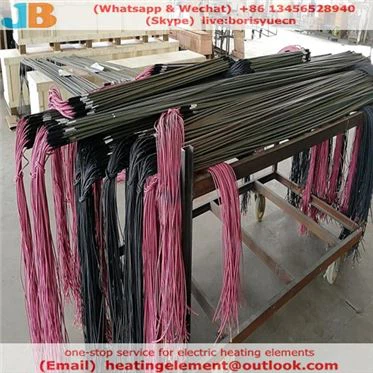

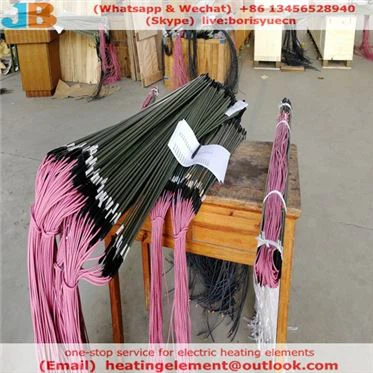

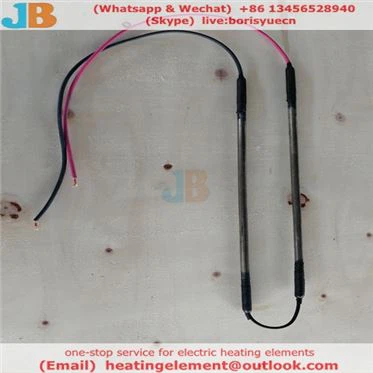

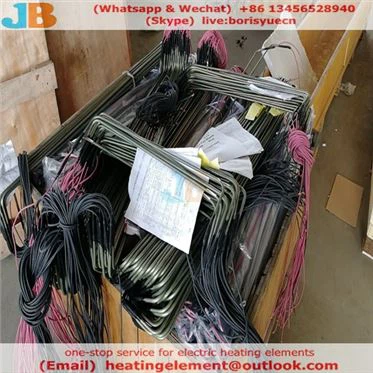

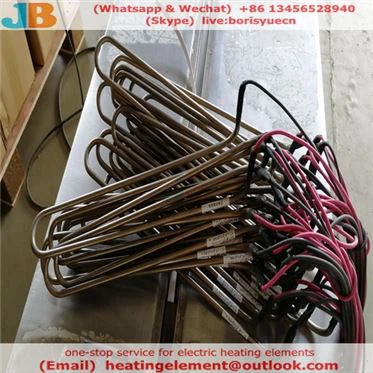

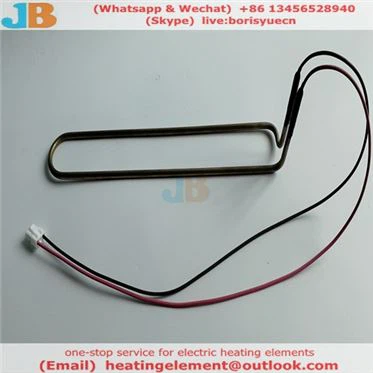

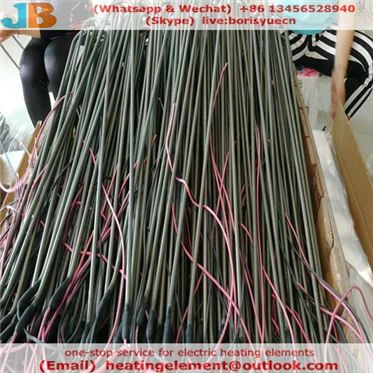

Part of our Defrost heaters production pictures
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |

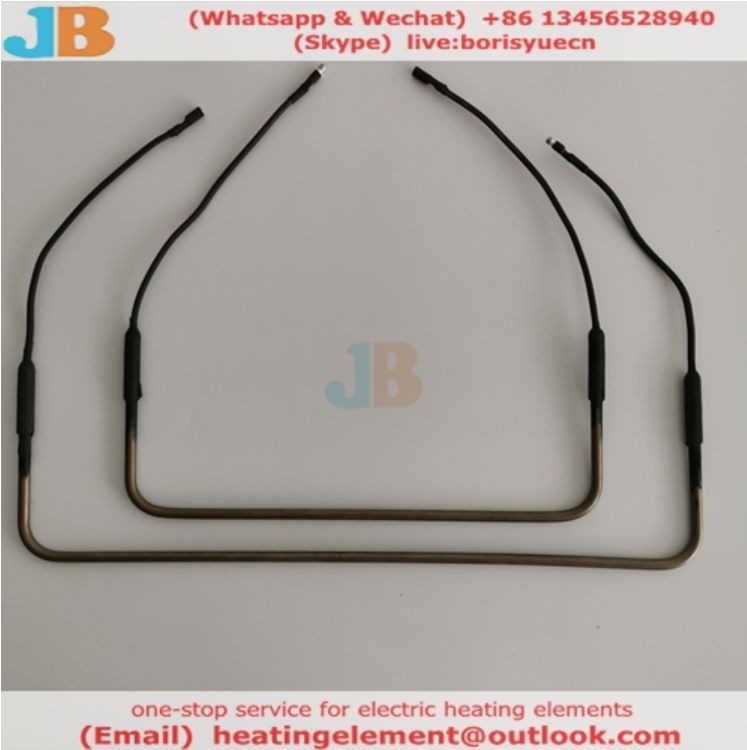

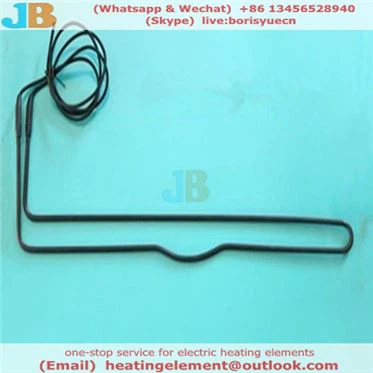

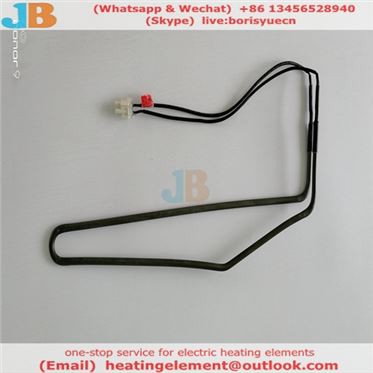

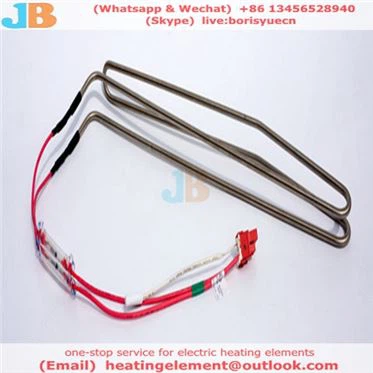

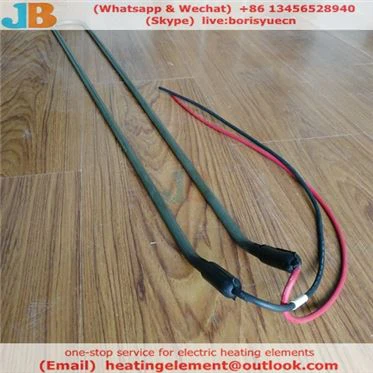

Our Defrost Heater Range
In fact, we are producing all kinds of stainless steel defrost heaters, and we have one advantage which other factories can't do it, that is the rubber heads, our rubber heads have very good seal feature, we are producing this kind of rubber heads more than 30 years, and we invented it by ourselves.
For more interesting, please contact us any time, my friends.
