Description

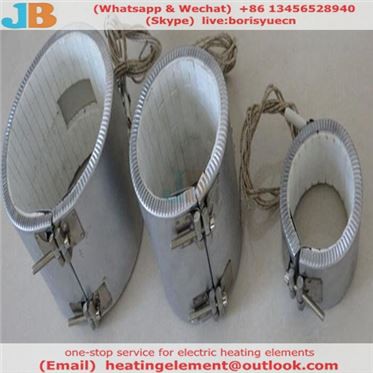

Ceramic Band Heater consists of helically wound Nickel-Chrome heating coil, evenly stretched and precisely stretched inside the insulating ceramic bricks to create uniform heating. 1/4" thick Ceramic fiber insulation gives minimum heat loss. Sensor holes can be provided according to requirement.

Specifications

Industrial Heater	Ceramic Band Heater
Resistance Wire	NiCr 80/20
Sheath	304 stainless steel
Insulation	Ceramic
Heater Voltage	120V 220V 230V 240V 480V standard (other voltages available on request)
Wavelength range	2-10 microns
Operating Temperature	300°C to 700°C (572°F - 1292°F)
Operating Life-Up	20,000 hrs
Radiation distance	100 mm to 250 mm

Application

Other Parameters

Insulation: 1/4" thick ceramic fiber insulation

Sizes: Minimum 2" Diameter & 1" wide and up

Terminals: Post Terminals Standard (1/4"-20 Thread or custom thread)

Sheath: Corrosion Resistant Stainless Steel

Lock-Up: Barrel Nut Standard (Optional Flange)

Standard Gap: 1/4" when tightened

Wall Thickness: 11/32" (+1/32", -.00)

Temperature: Up to 1500 F

Watt Density: Up to 60W/Sq. in.

Voltage: Up to 480 V (Single or three phase)

Resistance Tolerance: +10%-5%

Wattage Tolerance: +5%-10%

Part of Our Production Pictures

With advanced technology, high-quality raw materials, and professional quality, our Ceramic Radiant Bundle Rod Heating Element has exported to many countries and regions in the world, and has won unanimous praise in the market. Our quality policy is to grasp quality around the market, track the international advanced level, create domestic first-class products, and meet customer needs. We combine management energy saving and technical energy saving, improve energy management system and implement green operation.
