We are recognized by the industry for our integrity, our strength and the excellent quality of our 12v 40w heaters cartridge, Industrial Flange Heating Tube, Machinery Equipment Heating Elements, as well as by our customers and partners all over the world! Powerful technology allows our company to design and manufacture more efficient and suitable products according to the specific needs of customers. What we advocate is the perfect product in cheap price, with extraordinary value and a rich product portfolio, to bring you a perfect shopping experience. We will build a one-stop full-service system to promote industry reforms and product upgrades.

Description

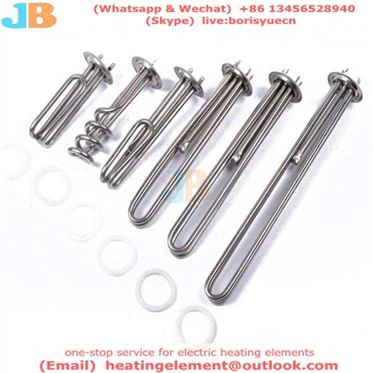

Immersion heating elements consist of hairpin bent tubular elements welded or brazed into a flange and provided with wiring boxes for electrical connections. Flange heaters are installed by bolting to a matching flange welded to the tank wall or nozzle. A wide selection of flange sizes, kilowatt ratings, voltages, terminal housings and sheath materials makes these heaters ideal for all types of heating applications.

Technical Data Sheet

Tube diameter	Φ8mm-Φ20mm
Tube Material	SS201, SS304, SS316, SS321 and INCOLOY800 etc
Insulation Material	MgO
Conductor Material	Nichrome Resistance Wire
Wattage Density	High/Middle/Low (5-25w/cm²)
Voltages available	380V, 240V, 220V, 110V, 36V, 24V or 12V
Lead Connection Option	Threaded Stud Terminal or Lead Wire

Our Services

We support OEM order,and print Brand or Logo on surface.

We can custom tubular heating elements specially (According to your size, voltage, power etc.)

Product Show

Attentions Before Ordering

The key questions which need to be answered before selecting a tubular heating element are:

1. What wattage and voltage will be used?

2. What is the diameter and heated length required?

3. What's the heating medium? Water or Oil heating?

4. What is maximum temperature and how long required to reach your temperature?

You are welcome to contact us for any questions.

From materials to finished products, we grasp every detail of 220 V 2 Kw 11 mm X 250 mm 3 Phase Immersion Heater for Water Heating to make the quality reassure our customers. We always regard 'creating honest service' as our unremitting goal. We take the initiative to assume social responsibility, actively develop circular economy, build environment-friendly enterprises and promote harmonious social development.
