Description

Drain Line Heater Cable for Refrigeration details information as below

1. It is mainly composed of nickel-chromium alloy wires and insulating material, and has fast heating speed, high heat efficiency and long service life.

2. Alkali-free glass fiber core rack is would with electric heating wires, silicon rubber is used as main insulation, the heat resistance performance is excellent, and the insulation performance is reliable.

3. It has great flexibility, and can be directly wound on a to-be-heated device, with good contact and uniform heating.

Technical Parameters

Heating Body		NiCr or Cu-Ni Alloy		Length/M	40W/M	50W/M
Tail End of Heating Body		Seal Tail End of Colloidal Silica		1	40W	50W
Maximum Surface Temperature		200°C		1.3	52W	65W
Minimum Surface Temperature		--60°C		1.5	60W	75W
Immergence Withstand Voltage		AC2500V/min		2.0	80W	100W
Voltage	220-230V	Shape	Average7*5mm	3.0	120W	150W
Power	±5%	Output Power	40-50W/M	4.0	160W	200W
Tape Body Length	±5mm	Insulation Resistance	≥200MN	5.0	200W	250W
Tolerance	±10%	Leaking Current	≤0.2MA	6.0	240W	300W

Application

Drain Line Heater Cable for Refrigeration is the electrical equipment designed and developed for the defrosting by the electrical heating on the refrigerating equipments like various refrigeration houses, refrigeration, exhibitions and island cabinets.

It can be conveniently inlayed in the fins of the air cooler and the condenser as well as the chassis of the water collector to do the defrosting work.

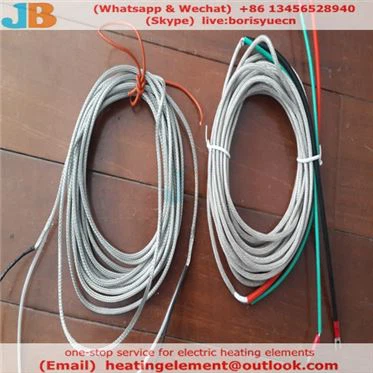

Production Photos
