Resistance Wire Heating Element
Description
Fe-Cr-Al alloy wires and Resistance Wire Heating Element are made of iron chromium aluminum base alloys containing small amounts of reactive elements such as yttrium and zirconium and produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.
The high aluminum content, in combination with the high chromium content let the scaling temperature can reach to 1425ºC (2600ºF);
Heating wires shaped by means of high speed automatic cooling machine of which the power capacity is controlled by computer, they are available as wire and ribbon.
Specifications
Alloy Nomenclature Performance | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
Main chemical composition (%) | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
Max. continuous service temp. of element (ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
Resistivity at 20ºC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1 | 1.04 | |
Density (g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
Thermal conductivity (KJ/m·h·ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
Coefficient of lines expansion (α×10-6/ºC) | 18 | 17 | 17 | 19 | 19 | |
Melting point (approx.) (ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
Elongation at rupture (%) | >20 | >20 | >20 | >20 | >20 | |
Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
Magnetic properties | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | Weak magnetic | |
Round wire: diameter 0.03mm-10.0mm
Flat wire: thickness 0.2mm-1.0mm, width 0.08mm-40.0mm

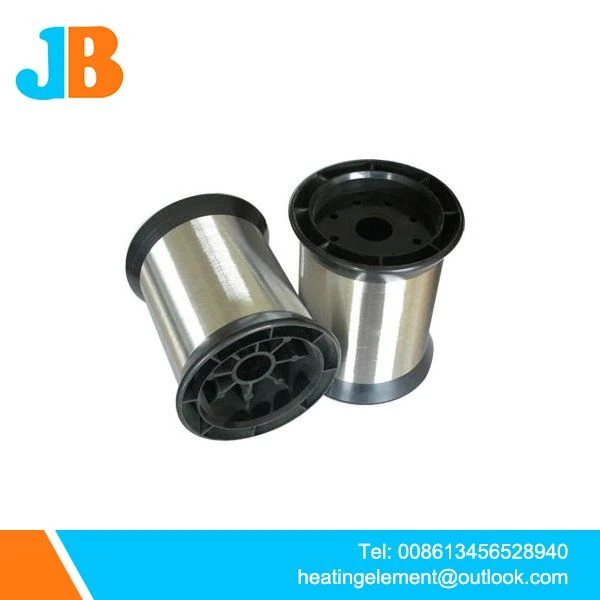

Surface Effects

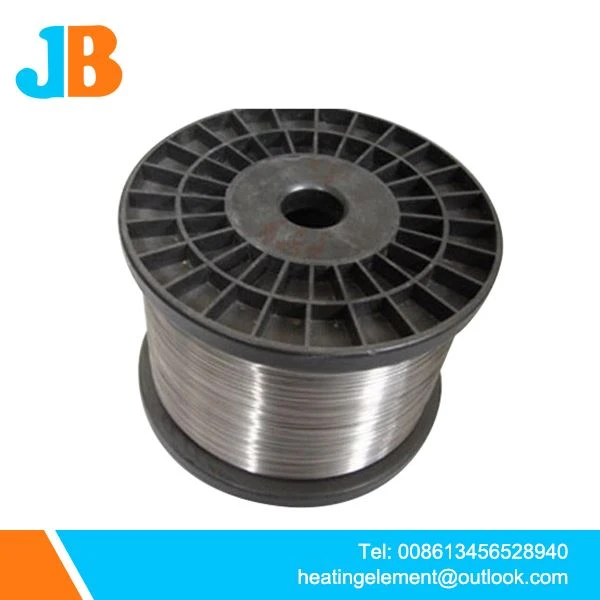

Other Production Photos
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |
Part of Appliations of Resistance wire heating element
Chrome nickel wire resistance is widely used for making electric heating elements in home appliances and industrial furnaces.,various electrical resistors and locomotive braking resistor, infrared equipment, liquefied gas infrared heat-resisting net, different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors and so on in Metallurgical machinery.
Please email us for any questions, our contact information as below, have a nice day.
