Washing Machine Resistance

The general household has 8, 10 liters of these two types, coin-operated commercial drum washing machine has two specifications, respectively 15 kg, 20 kg, in fact, different manufacturers also have different specifications The structure of the Washing Machine Resistance is a metal tube into the...

Send Inquiry

Chat Now

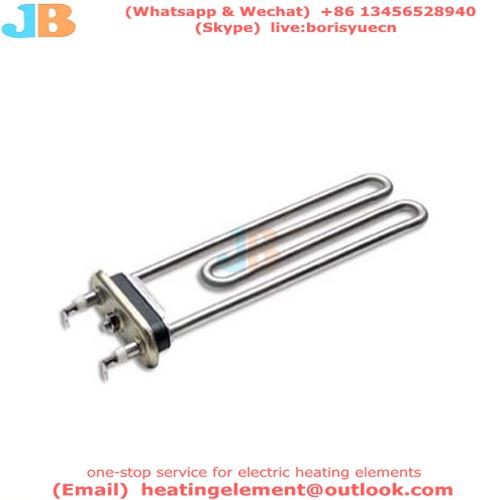

The structure of the Washing Machine Resistance is a metal tube into the heating wire, and the gap part is tightly filled with good thermal conductivity and insulation of crystalline magnesium oxide, both ends of the heating wire are connected to the power supply through two lead rods, it has the advantages of simple structure, long life, high thermal efficiency, good mechanical strength, and can be bent into various shapes to use safely. At present, the electric heating tubes used for washing machines on the market are generally general-purpose heating tubes, which often have uneven heating and are not well controlled uniformly, and there are blind zones in heating.

Washing Machine Resistance in the drum washing machine is a washing electric heating tube.

In order to improve the washing effect of the washing machine, usually the drum washing machine should be washed with heat.

The outer wall of the heater is made of stainless steel pipe, the center is equipped with a heating wire, and the middle is insulated with magnesium powder; The washing electric heating tube has a power of 1700W, is installed in the lower part of the outer cylinder, and the heating part is in water.

The drying electric heating tube has a power of 1200W (or 1000W) and is installed on the outer drum air duct. Due to the difference in stainless steel materials, this heating tube has high temperature resistance and can be used for dry burning. When drying, the drying fan blows the heat generated by the heating tube into the washing machine to dry out the moisture in the laundry.

Washing Machine Resistance
