Description

Electric Heater Type: heating elements for sauna heaters

Certification: CE

Power: Customized

Dimension(L*W*H): Customized

Weight: Customized

Power(W): Customized

Tubular heater sheath: SUS202/304/316L/Incoloy 800

Insulation of tubular heater: High purity, grade A compacted

Heating conductor: NiCr8020

Power density: Maxi 50W/CM²

Temperature resistance: 800 centi degree

Main Features

1) Electric Heating Tubes are widely used to heat liquids, air or metals as a reliable, economical, and versatile way.

2) Electric Heating Tubes are constructed using a copper, steel, stainless steel, or Incoloy sheath material, and the service life is very long.

3) We offer different tube diameters like 6 mm, 8 mm, 11 mm, 12.5mm, 16mm & 18mm and so on.

Advantages

1) It can protect heating elements moisture.

2) Our products are up to the standard of CE, ROHS

3) We offer various shapes as customer's requests, please advise us your size, voltage, power, shape, material, etc.

4) The advantage of heat pipes over many other heat-dissipation mechanisms is their great efficiency in transferring heat.

5) Provides convenient temperature sensor insertion and replacement

Parts of pictures

Parts of production pictures

How to order the production?

Let us know below information:

Shape

Diameter

Power

Length

Voltage

Lead & Fitting (connection and fitting type, leads length)

Quantity

Want to buy some trial order now? Be happy to contact us as follows:

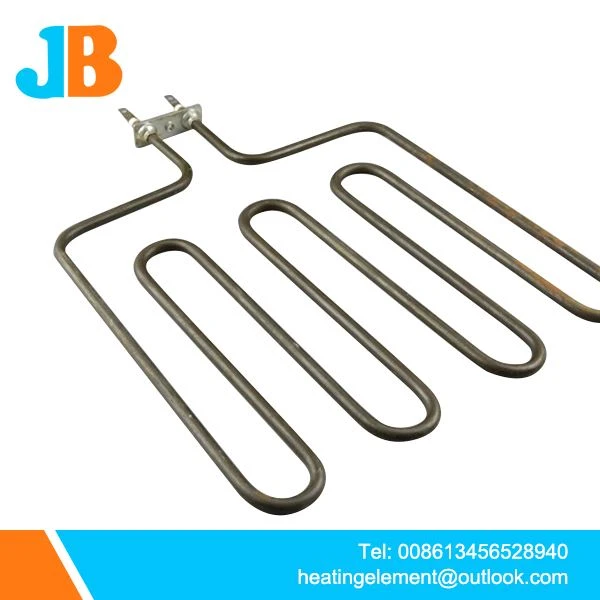

Heating Elements for Sauna Heaters
