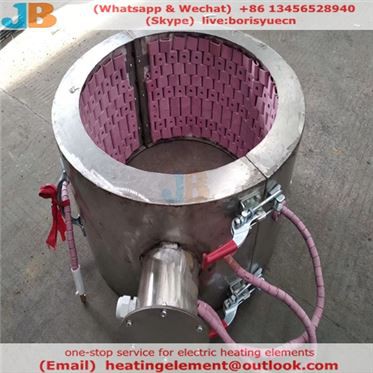

Mineral Insulated Band Heaters
Description
Mineral Insulated Band Heaters made of ceramic insulation, nickel chrome heating wire and stainless steel sheath, Extruder band heaters are the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry.
Specification
Product Name | Mineral Insulated Band Heaters |
Band Voltage | 120V 220V 230V 240V 480V etc (under customer request) |
Max working temperature | 550 degree celsius |
Resistance Wire Type | NiCr 80/20 |
Sheath Material | 304 stainless steel |
Insulation Material | Ceramic |
Band Construction | One-piece or Two-Piece |
Gap Locking Mechanism Type | Flange, Barrel Nuts or None |
Lead Exit Position | Standard or Customized |
Termination Style | Standard lead, Screw terminal; 2-Pin Euro Plug or 3-Pin Euro Plug |
Holes availability | Customer- Design |
Notches availability | Customer- Design |
Use condition | Environment temperature -20～+60℃, Relative temperature <80% |
Leakage current | <0.5MA |
Insulation resistance | >=5M |
Ground resistance | <0.1Ω |
Voltage resistance | No electric breakdown for 1 minute under 1500v |
Temperature endurance | 500～800℃ |
Power deviation | +5%-10% |
Product Details
Part of our Production
 |  |  |
 |  |  |
 |  |  |
 |  |  |
